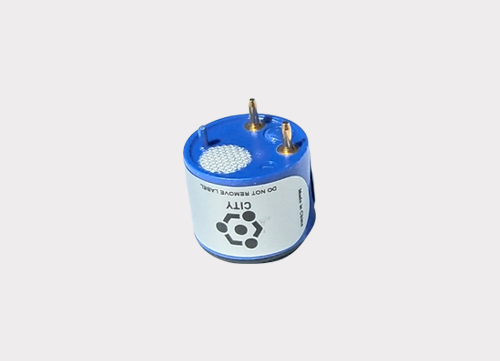

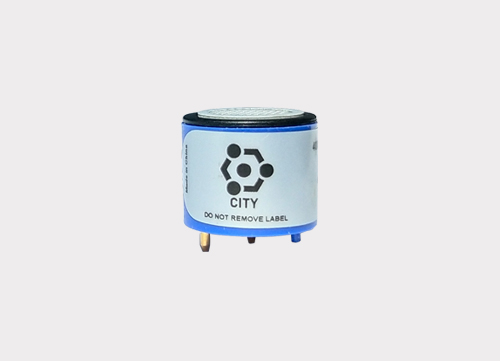

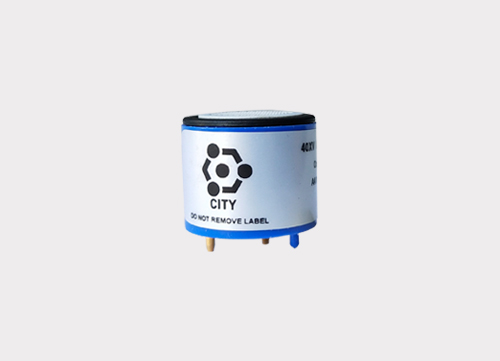

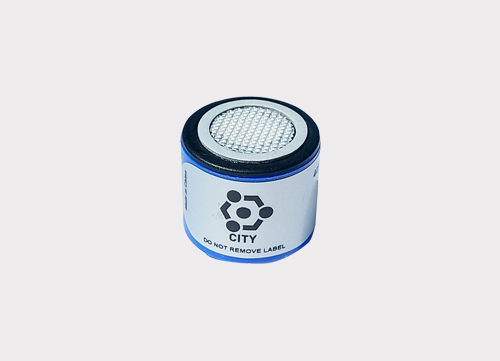

4O2-City传感器

类 别: City 传感器

描 述: 河南英科传感技术有限公司是**的以气体传感器销售与技术服务的科技型公司。 英科传感技术公司提供的传感器类型有红外气体传感器、激光甲烷气体传感器、电化学气体传感器、半导体气体传感器、催化燃烧式气体传感器、热导型气体传感器、热线型气体传感器、微量粉尘气体传感器、PID光离子型气体传感器、烟雾传感器、TVOC气体传感器、大颗粒粉尘气体传感器、传感器及其传感器模块可用于检测多达200余种气体。

24小时服务热线
18003846330
产品详情

Technical Specifications:


MEASUREMENT

Technology

2-electrode electrochemical

Measruement Range

0-25% vol. O2

Maximum Overload

30% vol. O2

Output Signal

0.10 ± 0.02 mA in Air

Response Time (T90)

<10 Seconds

Baseline Offset (clean air)

<0.3% vol. O 2

Maximum Zero Shift

(+20°C to +40°C)

< ±5%



Linearity

Can be considered linear in many cases. See Operating Principles for further information



ELECTRICAL:

Recommended Load Resistor

100 Ω

Resolution

Dependant on electronics



MECHANICAL;

Housing Material

ABS

Weight

15 g (approx)

OrientationSensitivity

<0.1%vol. O 2 equivalent

 ENVIRONMENTAL:

Operating Temperature Range

-20°C to +50°C

Temperature Coefficient

0.2% signal / °C

Thermal Transient

<23.5% vol. O 2

(Temp plunge +22°C to -20°C)

Operating Pressure Range

1 atm ± 10%



Pressure Coefficient

<0.02% signal/mbar

Pressure Transient

15% to 90% RH non-condensing

(60 cm H 2 O step change

<200% signal change

Operating Humidity Range:

Continuous

Intermittent



5 to 95%RH non-condensing

0 to 99%RH non-condensing

LIFETIME:


Long Term Output Drift

< 5% signal / year

Recommended Storage Temp

0 - 20°C

Expected Operating Life

Minimum 25 months in air

Storage Life

6 months in sealed container

Warranty Period

12 months from date of despatch
